Specification
|
Items |
Specifications |
|
Max. swim over bed |
Φ400mm |
|
Max.swim over carriage |
Φ245mm |
|
Max.length of work piece |
750mm |
|
Size of three-jaw chuck |
Φ250mm |
|
Range of spindle speed |
150~500 320~1600rpm (2 gears) |
|
Spindle bore |
Φ52mm |
|
Taper of spindle bore |
MT5 |
|
stations of tool carrier |
4 |
|
Max.size of tool post |
25×25mm |
|
Min.setting unit of motor |
(Z) axis 0.001mm (X) axis 0.001mm |
|
Moving speed of post |
(Z) axis 8 m/min (X) axis 6m/min |
|
Taper of tailstock quill |
MT4 |
|
Max. range of tailstock quill |
120mm |
|
Motor power |
5.5KW |
|
Packing size (mm) |
2050×1400 ×1650mm |
|
Net weight |
2100kg |
Standard configuration
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
Guaratee and after-sale services
1. One year guarantee for whole machine
2. 24-hours technical support by E-mail or telephone
3. Provide extra accessories for the machine
4. Also provide service of make program according to your drawings
5. Customized or special design is OK

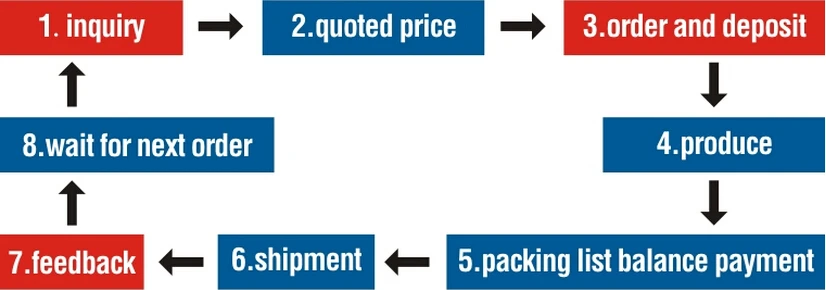

How to buy
Contact me
| FOB Price: | 10322 usd |
| Minimum Order: | 1 |
| Port: | Qingdao |
| Payment Terms: | TT |
